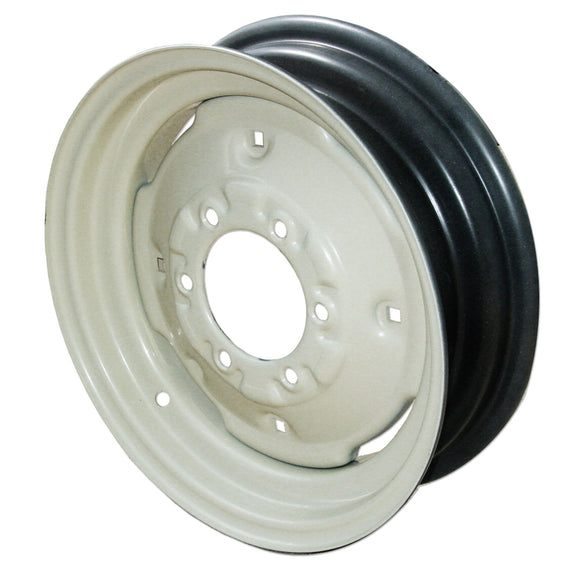

4.5 x 16 (6 Lug) Front Wheel with 4 round wheel weight holes
Item #: WHS022-MM- 4.5" x 16" front wheel
- Fits 5.50" and 6.00" wide tires (16" diameter)
- Rim width is measured between the bead points (1" less than outside to outside measurement)
- 4.625" pilot hole
- 2500 lb. capacity
- 6" center to center bolt pattern
- (4) round wheel weight holes
- Powder coat paint finish
Other Application Info
- 4 3/4" backspacing
- To determine backspacing, lay the wheel flat with the back facing up.
- Next lay a straightedge across the wheel and measure the gap between the mounting face and the straight edge.
-
Measure the old rim BEFORE ordering, as other sizes could have been installed on your tractor at one time.
- Steiner Tractor is not responsible for shipping on misordered rims.
- Use with new lug bolts / nuts.
- Not designed for tubeless applications
- Does not fit imported compact tractors
| Model | Note | Equipment Information |
|---|---|---|
| 335 | Some, using 4-1/2" x 16" 6 lug rim | |
| 445 | Some, using 4-1/2" x 16" 6 lug rim | |
| JetStar | Some, using 4-1/2" x 16" 6 lug rim | |
| 4 Star | Some, using 4-1/2" x 16" 6 lug rim | |
| JetStar 3 | Some, using 4-1/2" x 16" 6 lug rim | |
| 4 Star Super | Some, using 4-1/2" x 16" 6 lug rim |
| Replacement Number | Note |
|---|---|
| 235086 | Allis Chalmers |
| 248460 | Allis Chalmers |
| 70235086 | Allis Chalmers |
| 70248460 | Allis Chalmers |
| G10660 | Case |
| G57005 | Case |
| V13830 | Case |
| VTA1303 | Case |
| Z524 | Cockshutt |
| 82006575 | Ford |
| 87389515 | Ford |
| 380065R91 | International |
| 704675R91 | International |
| AN241675 | John Deere |
| JD3002 | John Deere |
| 195638M91 | Massey Ferguson |
| 506020M91 | Massey Ferguson |
| 535448M91 | Massey Ferguson |
| 10A27293 | Minneapolis Moline |
| 1KS-729A | Oliver |
