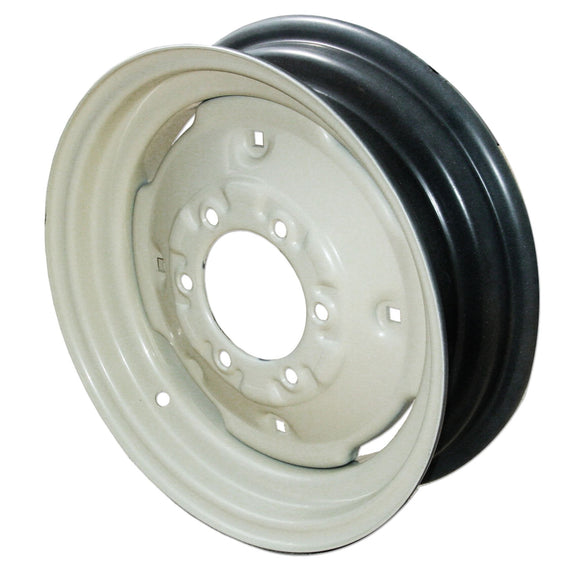

4.5 x 16 (6 Lug) Front Wheel with 4 round wheel weight holesItem #: WHS022-I
Shipping calculated at checkout.
- 4.5" x 16" front wheel
- Fits 5.50" and 6.00" wide tires (16" diameter)
- Rim width is measured between the bead points (1" less than outside to outside measurement)
- 4.625" pilot hole
- 2500 lb. capacity
- 6" center to center bolt pattern
- (4) round wheel weight holes
- Powder coat paint finish
Other Application Info
- 4 3/4" backspacing
- To determine backspacing, lay the wheel flat with the back facing up.
- Next lay a straightedge across the wheel and measure the gap between the mounting face and the straight edge.
Measure the old rim BEFORE ordering, as other sizes could have been installed on your tractor at one time.
- Steiner Tractor is not responsible for shipping on misordered rims.
- Use with new lug bolts / nuts.
- Not designed for tubeless applications
- Does not fit imported compact tractors
