11 X 28 Rear Rim (Spinout) - Bubs Tractor Parts

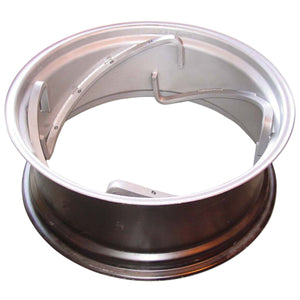

11 X 28 Rear Rim (Spinout)

Item #: ACS028-F
  • $494.95
Shipping calculated at checkout.


Specifications

  • 4 Rails
  • Holes for stop adjustment are drilled 90 degrees perpendicular to side of rim not 90 degrees to rail
  • Stop holes are angled
  • Use MIS109 Stop for this rim
  • To determine width of rim measure on the inside (bead to bead) not outside to outside
  • Not designed for tubeless applications
Other Application Info
  • 4 Rails
  • Holes for stop adjustment are drilled 90 degrees perpendicular to side of rim not 90 degrees to rail
  • Stop holes are angled
  • Use MIS109 Stop for this rim
  • To determine width of rim measure on the inside (bead to bead) not outside to outside
  • Measure the old rim BEFORE ordering as other sizes could have been installed on your tractor at one time. Steiner Tractor is not responsible for shipping on misordered rims.
  • Rims can be 2" wider or narrower than the tire, I.E. if you have a 10" tire (11.2) you can use a rim width of 8" thru 12" safely.
  • Not designed for tubeless applications

Replaces : 220011 Allis Chalmers, 70220011 Allis Chalmers, G13266 Case, T19270 Cockshutt, C5NN1050H Ford, 373300R91 International, 1751395M92 Massey Ferguson, 535452M91 Massey Ferguson, 100086A Oliver

Fits Models : 2000 3 cylinder 1965 & up using 11" x 28" 4 rail spin out
2110 1965 & up using 11" x 28" 4 rail spin out
2120 1965 & up using 11" x 28" 4 rail spin out
2300 1965 & up using 11" x 28" 4 rail spin out
2310 1965 & up using 11" x 28" 4 rail spin out
2600 1965 & up using 11" x 28" 4 rail spin out
2610 1965 & up using 11" x 28" 4 rail spin out
2910 1965 & up using 11" x 28" 4 rail spin out
3000 1965 & up using 11" x 28" 4 rail spin out
3055 1965 & up using 11" x 28" 4 rail spin out
3100 1965 & up using 11" x 28" 4 rail spin out
3110 1965 & up using 11" x 28" 4 rail spin out
3120 1965 & up using 11" x 28" 4 rail spin out
3150 1965 & up using 11" x 28" 4 rail spin out
3190 1965 & up using 11" x 28" 4 rail spin out
3300 1965 & up using 11" x 28" 4 rail spin out
3310 1965 & up using 11" x 28" 4 rail spin out
3330 1965 & up using 11" x 28" 4 rail spin out
3600 1965 & up using 11" x 28" 4 rail spin out
3610 1965 & up using 11" x 28" 4 rail spin out
4000 3 cylinder 1965 & up using 11" x 28" 4 rail spin out
4000SU 1965 & up using 11" x 28" 4 rail spin out
4110 1965 & up using 11" x 28" 4 rail spin out
