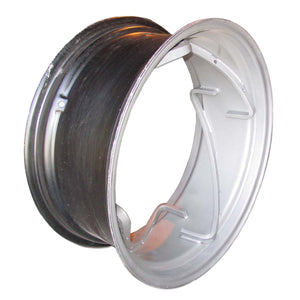

12 X 28 Rear Rim (Spinout)
Item #: ACS026-F- 4 Rails
- Holes for stop adjustment are drilled 90 degrees perpendicular to side of rim not 90 degrees to rail
- Stop holes are angled
- To determine the rim width you need, measure the rim on the inside (from bead to bead) NOT outside to outside
- Not designed for tubeless applications
- Measure the old rim BEFORE ordering as other sizes could have been installed on your tractor at one time. Steiner Tractor is not responsible for shipping on misordered rims.
- Rims can be 2" wider or narrower than the tire, I.E. if you have a 10" tire (11.2) you can use a rim width of 8" thru 12" safely.
Replaces : 226270 Allis Chalmers, 70226270 Allis Chalmers, C5NN1050J Ford, 365324R92 International, AL60764 John Deere, AM3202T John Deere, 1687615M91 Massey Ferguson, 10P787 Minneapolis Moline, 100047AS White, 156072A White
Fits Models : 2000 3 cylinder using 12" x 28" 4 rail spin out
2110 using 12" x 28" 4 rail spin out
2120 using 12" x 28" 4 rail spin out
2300 using 12" x 28" 4 rail spin out
2310 using 12" x 28" 4 rail spin out
2600 using 12" x 28" 4 rail spin out
2610 using 12" x 28" 4 rail spin out
2910 using 12" x 28" 4 rail spin out
3000 using 12" x 28" 4 rail spin out
3055 using 12" x 28" 4 rail spin out
3100 using 12" x 28" 4 rail spin out
3110 using 12" x 28" 4 rail spin out
3120 using 12" x 28" 4 rail spin out
3150 using 12" x 28" 4 rail spin out
3190 using 12" x 28" 4 rail spin out
3300 using 12" x 28" 4 rail spin out
3310 using 12" x 28" 4 rail spin out
3330 using 12" x 28" 4 rail spin out
3600 using 12" x 28" 4 rail spin out
3610 using 12" x 28" 4 rail spin out
4000 3 cylinder using 12" x 28" 4 rail spin out
4000SU using 12" x 28" 4 rail spin out
4110 using 12" x 28" 4 rail spin out
