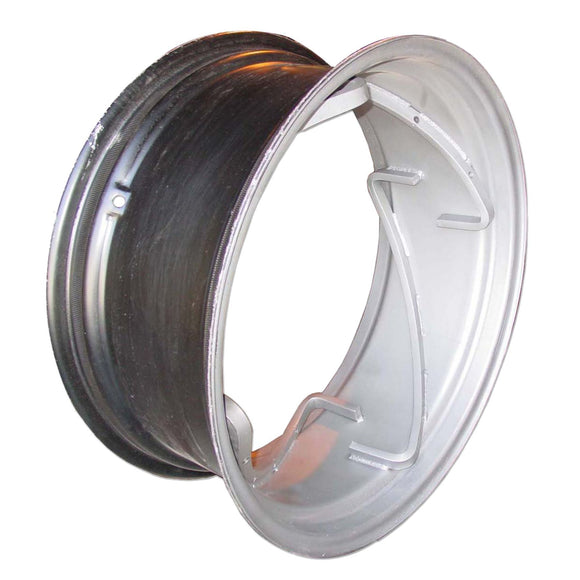

12 X 28 Rear Rim (Spinout)

• 4 Rails
• Holes for stop adjustment are drilled 90 degrees perpendicular to side of rim not 90 degrees to rail
• Stop holes are angled
• To determine the rim width you need, measure the rim on the inside (from bead to bead) NOT outside to outside
• Not designed for tubeless applications

• Measure the old rim BEFORE ordering as other sizes could have been installed on your tractor at one time. Steiner Tractor is not responsible for shipping on misordered rims.
• Rims can be 2" wider or narrower than the tire, I.E. if you have a 10" tire (11.2) you can use a rim width of 8" thru 12" safely.

Replaces : 226270 Allis Chalmers, 70226270 Allis Chalmers, C5NN1050J Ford, 365324R92 International, AL60764 John Deere, AM3202T John Deere, 1687615M91 Massey Ferguson, 10P787 Minneapolis Moline, 100047AS White, 156072A White

Fits Models : 200 using 12" x 28" 4 rail spin out
200B using 12" x 28" 4 rail spin out
210B using 12" x 28" 4 rail spin out
211B using 12" x 28" 4 rail spin out
210 using 12" x 28" 4 rail spin out
211 using 12" x 28" 4 rail spin out
300 using 12" x 28" 4 rail spin out
300B using 12" x 28" 4 rail spin out
310B using 12" x 28" 4 rail spin out
311 using 12" x 28" 4 rail spin out
311B using 12" x 28" 4 rail spin out
400B using 12" x 28" 4 rail spin out
410B using 12" x 28" 4 rail spin out
411B using 12" x 28" 4 rail spin out
301B using 12" x 28" 4 rail spin out
430 using 12" x 28" 4 rail spin out
431 using 12" x 28" 4 rail spin out
441 using 12" x 28" 4 rail spin out
470 using 12" x 28" 4 rail spin out
480 using 12" x 28" 4 rail spin out
530 using 12" x 28" 4 rail spin out
531 using 12" x 28" 4 rail spin out
540 using 12" x 28" 4 rail spin out
541 using 12" x 28" 4 rail spin out
570 using 12" x 28" 4 rail spin out

Case industrial : 310 Crawler using 12" x 28" 4 rail spin out
