Front Crankshaft Pulley (Ductile iron) - Bubs Tractor Parts

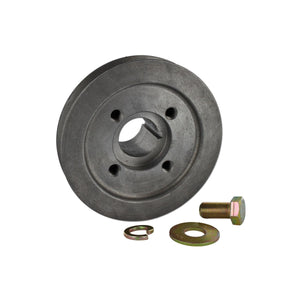

Front Crankshaft Pulley (Ductile iron)

Item #: MFS112
  • $115.00
Shipping calculated at checkout.

  • The pulley measures 2-5/8" overall length and 5-3/4" outside diameter.
  • It has a 3/4" belt groove width and (4) 7/16" - 14 NC threaded holes for front mount hydraulic pump.
  • For front loader pumps, the center to center measurement across the threaded holes is 2-3/4" center to center.
  • For the drive hub, if needed, use ABC1812, for the drive shaft (which may have to be cut to length depending on the application) use ABC1814.
  • Includes the mounting bolt (grade 8) and lock washer and flat washer. The bolt measures 5/8" - 18 UNF x 1-1/4".

Fits Massey TE20, TO20, TO30

Replaces - 1750301M1
