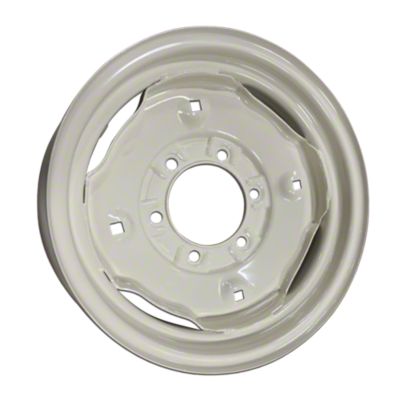

3 x 15 (6 Lug) Front Wheel
Item #: WHS019-C- For use with 4.00 x 15" or 5.50 x 15" tires
- 3" wide (bead to bead) x 15" diameter (bead to bead)
- 6 lug bolt hole.
- 4-5/8" inside diameter pilot
- 3" center to center lug bolts
- 3.25" backspacing
- Off-White powder coat paint
- To determine backspacing, lay the wheel flat on the ground with the back of the wheel facing up. Next, lay a straightedge across the wheel and measure the distance from the backside of the mounting surface to the straightedge.
- To determine the width of rim, measure on the inside from bead to bead, not outside to outside.
- If you are only ordering 1 rim, then please measure the old rim BEFORE ordering, as other sizes could have been installed on your tractor at one time.
- Use with new lug bolts / nuts.
- Not designed for tubeless applications.
- Also used as a light weight rim for antique pulling tractors.
Fits Case models
200 Some, W/ Tricycle Frt Axle, Using 3" x 15" Rim
200B Some, W/ Tricycle Frt Axle, Using 3" x 15" Rim
211B Some, W/ Tricycle Frt Axle, Using 3" x 15" Rim
211 Some, W/ Tricycle Frt Axle, Using 3" x 15" Rim
430 Some, To Sn: 8262800 W/ Tricycle Frt Axle, Using 3" x 15" Rim
431 Some, To Sn: 8262800 W/ Tricycle Frt Axle, Using 3" x 15" Rim
435 Some, To Sn: 8262800 W/ Tricycle Frt Axle, Using 3" x 15" Rim
441 Some, To Sn: 8262800 W/ Tricycle Frt Axle, Using 3" x 15" Rim
445 Some, To Sn: 8262800 W/ Tricycle Frt Axle, Using 3" x 15" Rim
480 Some, To Sn: 8262800 W/ Tricycle Frt Axle, Using 3" x 15" Rim
Fits Cockshutt models
E2 Some, using 3" x 15" rim Co-Op
20 Some, using 3" x 15" rim
Replaces G10661 Case
Z130 Cockshutt
